High helix leadscrew | Eichenberger Gewinde AG

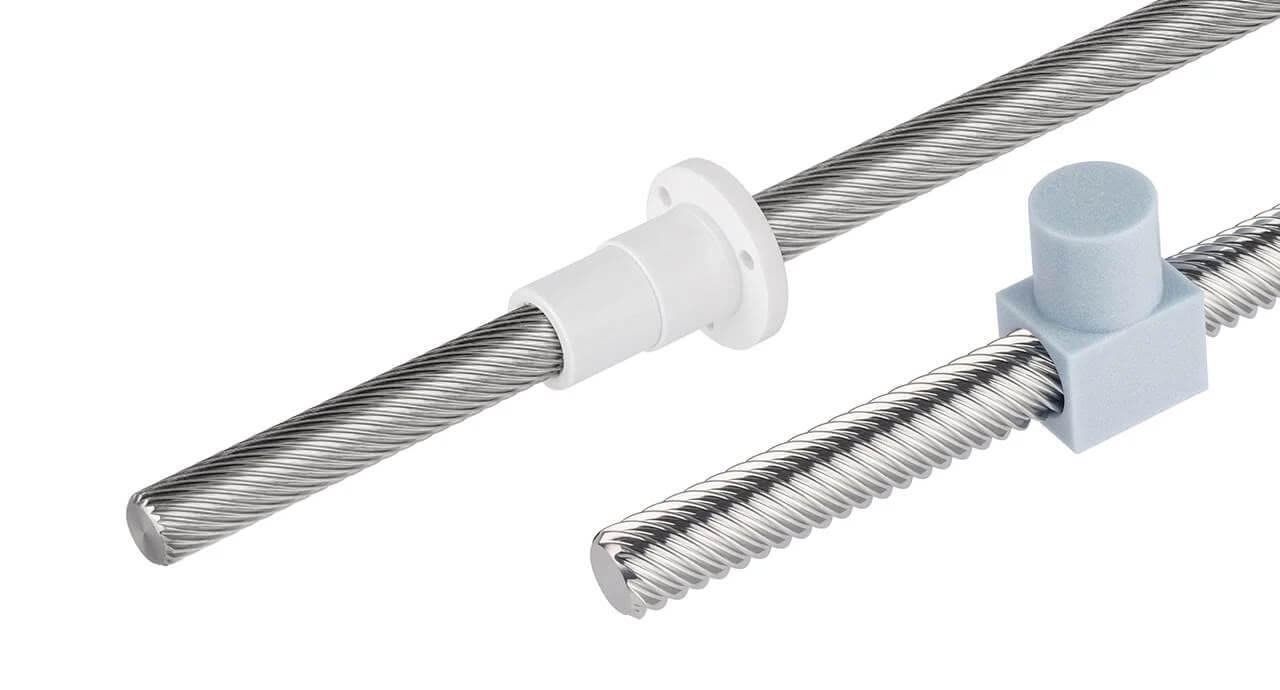

Never before have such high travel speeds been achieved with such low rotational speeds as with the Eichenberger Speedy high-helix leadscrew. Extreme pitches of up to six times the diameter also meet the most challenging demands for efficient conversion of linear to rotary motion. High-helix leadscrews can also be used as innovative drive solutions to replace toothed belt drives, as they can be freely accelerated and positioned and operate without a second energy source. The good efficiency and price/performance ratio make them an ideal alternative to trapezoidal or ball screws for certain applications.

Design features

Leadscrews with high helix pitches bigger than the screw diameter (p ≤ 6xd) are manufactured from corrosion-protected steel by a cold rolling process and are combined with wear-resistant technopolymer flanged nuts in non-preloaded or preloaded versions. They are ideal for low to medium loads with small to mid-load capacity. Nuts made from bronze or alternative technopolymers can be used for higher loads or special applications. The finest surface quality of the steel leadscrews and high-performance technopolymer nuts enable very high efficiency levels.

Small to medium load ratings
Very high travel speeds
High efficiency (η ≈ 0,5 ... 0,8 )
Weight optimisation with aluminium spindles
Performance optimisation coating
Highly reliable
Low maintenance and long service life

Downloads

TOUCH

Technical basis

Technical basis READ MORE

TOUCH

Main catalogue

Main catalogue READ MORE

TOUCH

Calculation basis Speedy, Easy, Rondo

Calculation basis Speedy, Easy, Rondo READ MORE

Find your perfect standard thread drive

The product finder product filter quickly guides you to the right thread drive to suit your requirements. The easy to use filter system assists your targeted search - simply select the technical data and your results will be displayed.

Standard nut variations for leadscrews

The following variations of the standard flange nut (flange nut type A, DIN 69051 principles) are available for Speedy leadscrews

TOUCH

Flange nut non-preloaded

Type SFM: POM-C black, EX-100, Ex-530, more on request
Type SBM: bronze

TOUCH

Flange nut, axial-preloaded (when p₀ < 6xd₀)

Type SFV: POM-C black
On request: bronze nut body

TOUCH

Flange nut, torsion-preloaded (when p₀ ≥ 6 x d₀)

Type SFT: EX 100 white
On request: bronze nut body

Kugelrückführungen

Carry Kugelgewindetriebe Typ F sind mit neu entwickelten Endkappen Kugelrückführungen versehen, die völlig in den Mutternkörper integriert sind. Sie sind aus Kunststoff gefertigt und erfüllen gleichzeitig die Funktion des Schmutzabstreifers.

TOUCH

Endkappen-Kugelrückführung

preiswerte Standardmutter
Aussendurchmesser gedreht
mit Festzugsbohrung

TOUCH

Endkappen-Kugelrückführung

preiswerte Standardmutter
Aussendurchmesser gedreht
mit Festzugsbohrung

TOUCH

Endkappen-Kugelrückführung

preiswerte Standardmutter
Aussendurchmesser gedreht
mit Festzugsbohrung

Tailor-made products

Do you have specific requirements that a standard product cannot meet? Or an idea without a solution yet? Have an inspiring consultation with us and we can develop and manufacture a tailor-made screw drive solution to your specifications - in the shortest possible time, venturing beyond the standard norms with our choice of materials, thread forms or dimensions. We look forward to finding the perfect motion for your requirements.

Application examples for Speedy leadscrews

The materials used for screw drives in medical and food applications or building technology must meet essential basic requirements. The smooth surface of the excellent stainless steel material and the rolling process replacing grinding enables Eichenberger to produce higher strength and more homogeneous surfaces. This results in significantly less wear, longer service life, less vibration and virtually silent operation.

Speedy leadscrews are mainly used when extremely high travel speeds are required. Maximum efficiency thanks to extreme pitch angles - in the smallest installation space.

TOUCH

Medical technology

Medical technology READ MORE

TOUCH

Building Technology
